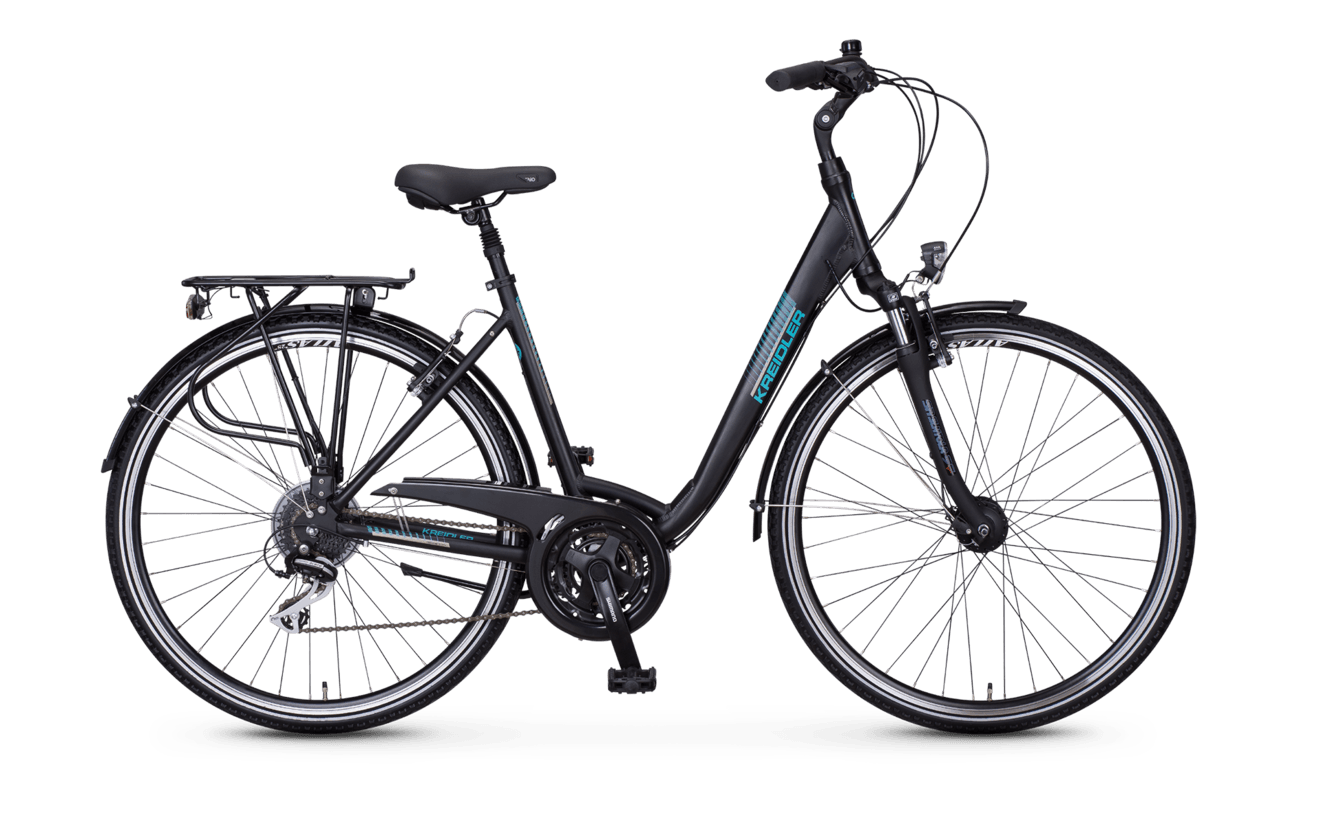

Raise RT4
Raise RT4 Shimano Acera 24-speed / V-Brake
  • Wave 28" 45 cm / 50 cm
  • Trapez 28" 45 cm / 50 cm / 55 cm
  • Diamant 28" 50 cm / 55 cm / 60 cm
Colour:
black matt
Price (incl. Vat.) 615.41 €
Händler finden » Compare »

Raise RT4

Shimano Acera 24-speed / V-Brake

Category: Bicycle / Trekking Bike

Comfortable trekking bike for every day

Are you looking for a bicycle that will enable you to get to work easily and to explore the surroundings at the weekend? Then the comfortable Raise RT4 is the right choice. Dynamics and manoeuvrability are the hallmarks of this entry-level trekking bike - you can ride just as effortlessly in rush-hour traffic as on tours in rural surroundings. This matte black trekking bike is available in three frame versions.



The Shimano 24-speed shifting system enables precise gear changes. Thanks to finely graduated gears, you can master varied routes effortlessly, while slight unevenness is ironed out by the comfort suspension fork from Suntour. And when the working day begins at dusk or the trekking tour lasts into the evening, light is needed. That's why we have equipped the Raise RT4 with an AXA lighting system. Headlamps and taillights, including a clever parking light, ensure that you can see and be seen at all times.

Specs

Framesize
Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50 cm
Frame
Aluminum 6061, 28" Trekking
max load
120 kg
Color
black matt
Fork
Suntour CR-7V,
Head set
Chin Haur, 1 1/8” semi-integrated
Shifting System
Shimano Acera RD-M360, 8-speed
Derailleur
Shimano FD-TY71
Brakes
Promax V-Brake rim brake
Headlights
AXA Echo 15 LED, 15 LUX including standinglight
Rear light
AXA Slim LED, including standinglight
Carriers
IMM-system, with spring clamp
Saddle
Selle Royal Rio
Seat post
Promax, suspension, aluminum, 27,2 mm, 300 mm
Pedals
Marwi, plastic
Kickstand
Ursus kickstand
Chainguard
plastic
Mudguard
SKS, plastic
Weight
17,3 kg
Stem
Promax MQ-565, aluminum, angle adjustable
Handlebars
Trekking, steel, 600 mm
Grips
Herrmans Ergo 84B
Shift lever
Shimano Altus
Brake lever
Shimano Altus
Tires
Kenda Trekking, 42-622, reflex
Rims
Schürmann YAK19 aluminum
Spokes
Niro 2,0 mm
Front Hub
Shimano DH-C3000, hub dynamo
Rear Hub
Shimano FH-TX500
Sprocket
Shimano CS-HG200, 12-32 teeth
Chain
KMC X8
Inner bearing
Thun Topaz
Bottom bracket
Shimano FC-TY301
Gear ratio (front:rear)
front 48/38/28, rear: 12-32
Show all specs + Show less specs Product data sheet
