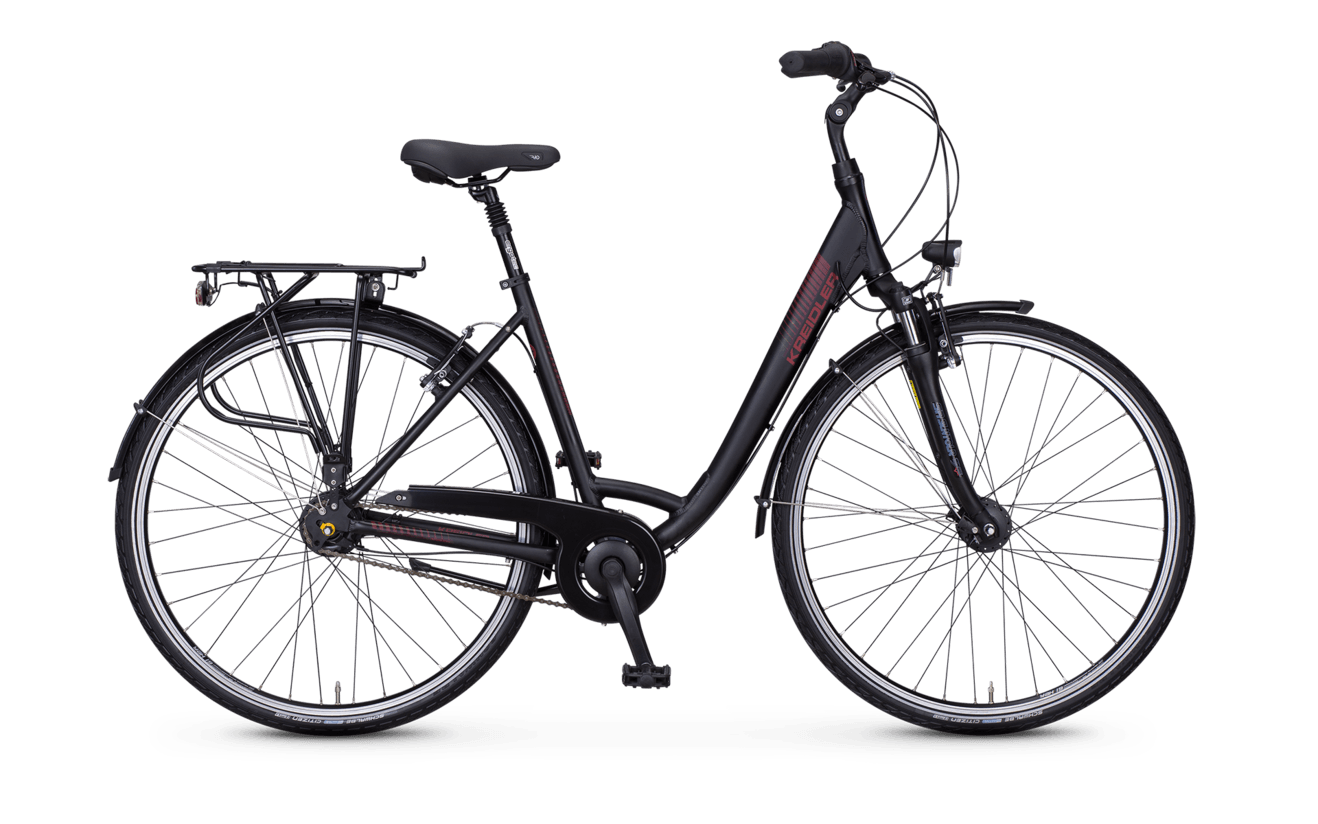

Raise RT5
Raise RT5 Shimano Nexus 8-speed coasterbrake / V-Brake
  • Wave 28" 45 cm / 50 cm / 55 cm
  • Trapez 28" 45 cm / 50 cm / 55 cm
  • Diamant 28" 50 cm / 55 cm / 60 cm
Colour:
black matt
Price (incl. Vat.) 718.00 €
Händler finden » Compare »

Raise RT5

Shimano Nexus 8-speed coasterbrake / V-Brake

Category: Bicycle / City bike

A superb trekking bike with added comfort

Commuting, off to the nursery, on a shopping trip or far into the woods? On the Raise RT5, you can cruise through the city without a hitch and also cut a fine figure on tours in nature. The light, robust aluminium frame is available in three frame shapes and impresses with its particularly high rigidity. With a tried-and-tested rear derailleur from Shimano and a Suntour suspension fork, the Raise RT5 is optimally equipped for daily use.



The RT5 Plus in comfort: Thanks to a sprung seat post and a Selle Royal saddle you can sit particularly comfortably even on longer tours; Herrmans' grips effectively relieve the strain on your wrists. The equipment of the Raise RT5 is rounded off by Schwalbe Citizien Reflex tyres and a practical luggage rack with spring flap.

Specs

Framesize
Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50, 55 cm
Frame
Aluminum 6061, 28" City
max load
140 kg
Color
black matt
Fork
Suntour CR-7V,
Head set
Chin Haur, 1 1/8” semi-integrated
Shifting System
Shimano Nexus 8-speed coasterbrake
Derailleur
N.V.
Brakes
Promax V-Brake rim brake
Headlights
Jing Yi LED plastic, 70 LUX including standinglight
Rear light
AXA Slim LED, including standinglight
Carriers
IMM-system, with spring clamp
Saddle
Selle Royal Rio
Seat post
Kind Shock KSP-630, patent, suspension, 27,2 mm, 300 mm
Pedals
Marwi, plastic
Kickstand
Ursus kickstand
Chainguard
plastic
Mudguard
SKS, plastic
Weight
17,6 kg
Stem
Promax MQ-565, aluminum, angle adjustable
Handlebars
Trekking, steel, 600 mm
Grips
Herrmans Ergo 84B
Shift lever
Shimano Nexus
Brake lever
Tektro, aluminum, 3-finger brake lever
Tires
Schwalbe Citizen, 42-622, reflex
Rims
Schürmann YAK19 aluminum
Spokes
2,0 mm, black
Front Hub
Shimano DH-C3000, hub dynamo
Rear Hub
Shimano Nexus 8-speed coasterbrake
Sprocket
Shimano 20 teeth
Chain
KMC S1
Inner bearing
Thun Twist 2.0
Bottom bracket
steel, 170 mm, 38 teeth
Gear ratio (front:rear)
front 38, rear: 20
Show all specs + Show less specs Product data sheet
