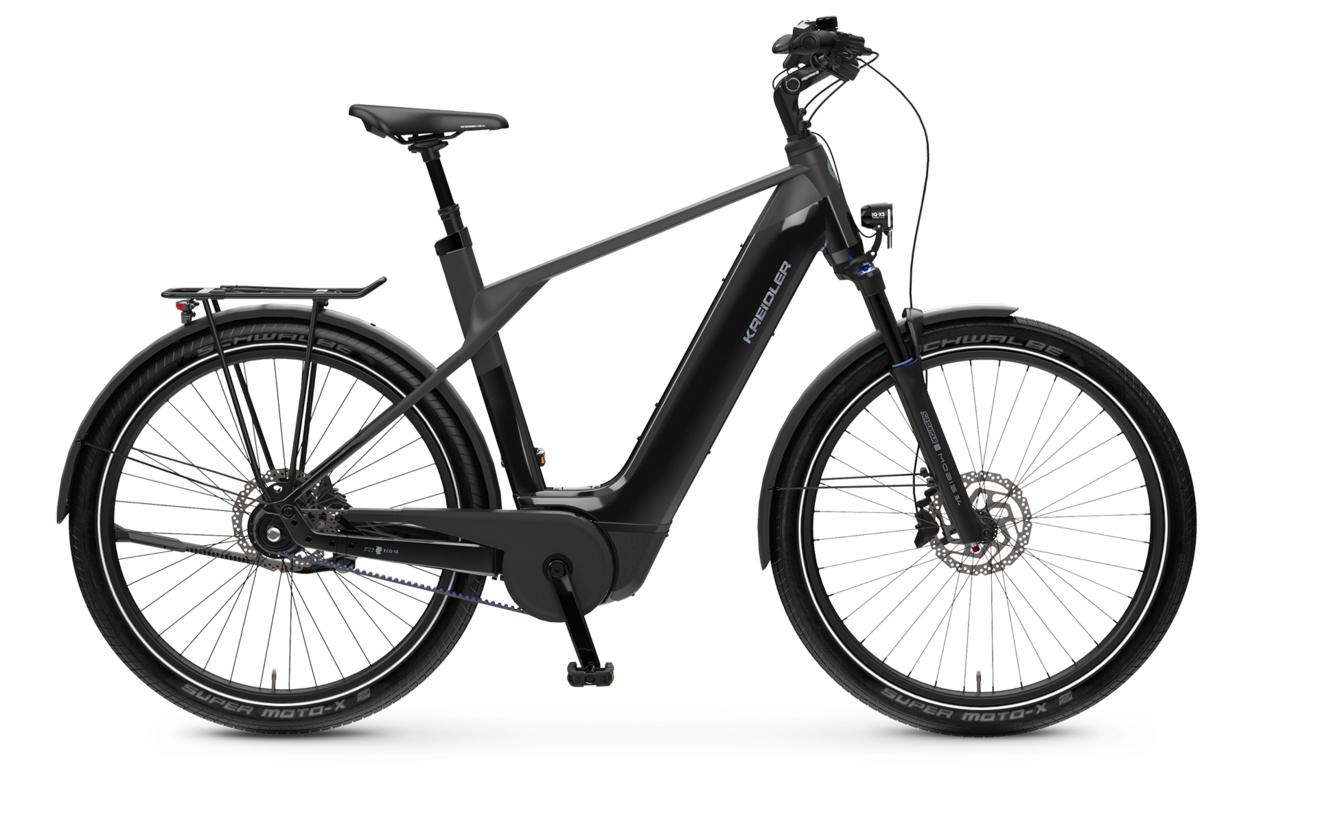

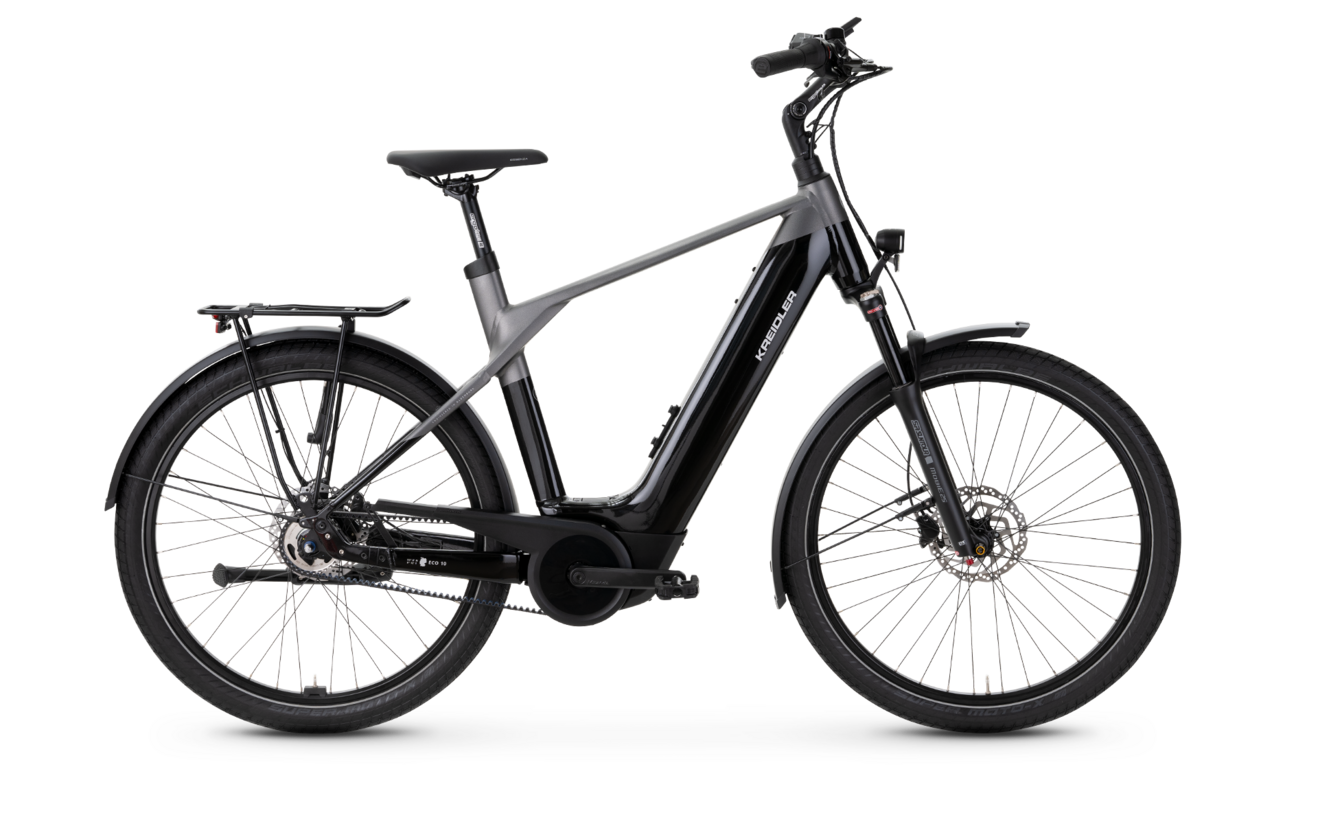

Vitality Eco 10
Vitality Eco 10 Shimano Nexus 5-speed free wheel / Bosch Performance Line CX / 625Wh / Disc / Gates
  • Wave 27.5" 45 cm / 50 cm / 55 cm
  • Diamant 27.5" 50 cm / 55 cm / 60 cm
Colour:
black glossy
Find a dealer » Compare »

Vitality Eco 10

Shimano Nexus 5-speed free wheel / Bosch Performance Line CX / 625Wh / Disc / Gates

Category: E-Bike / SUV e-bike

Upper class SUV e-bike

Fast, comfortable, suitable for off-road use: the wide Schwalbe Super Moto-X tires master any surface with ease - whether city pavement or forest path. The powerful Bosch Performance Line CX motor with up to 85 Nm of torque provides dynamic support. The fully integrated 625 Wh frame battery provides the necessary endurance - even for longer tours.



Comfort and control perfectly combined: The low-maintenance Gates CDX belt drive in combination with the Shimano Nexus 5-speed hub gear ensures a pleasantly smooth and easy riding experience. Ergonomic Humpert Ergotec grips and the Essenza saddle from Selle Royal with FlexFoam technology provide noticeable relief - especially on long distances.



The powerful Shimano MT disc brakes with 180 mm discs at the front and rear ensure safe stopping - even at higher speeds - precisely, powerfully and reliably.



Drive unit: Bosch Performance Line CX
36 volt, mid-motor / rated output 250 watts



Battery: Bosch frame battery, fully integrated
Energy content: 625 Wh / Voltage: 36 volts / Capacity: 16.7 Ah



Display: Intuvia 100


Intuvia 100 – das smarte System

Das Display ist dank großer Schrift besonders übersichtlich gestaltet und bietet mit der Schaltempfehlung mehr Sicherheit und Komfort. Die Bedienung erfolgt intuitiv und kabellos über die Bedieneinheit – so bleiben die Hände sicher am Lenker. Besonders smart: System-Updates erfolgen automatisch und „eLock“ bietet als digitaler Schlüssel mehr Schutz vor Diebstahl.

Specs

Framesize
Diamant 27.5": 50, 55, 60 cm
Wave 27.5": 45, 50, 55 cm
Drive Unit
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Display
Intuvia 100
Power
Bosch Frame battery fully integrated, 625 Wh, 36 Volt, 16.7 Ah, Downtube
Frame
aluminum 6061, Bosch BES3, fully integrated
max load
140 kg
Color
black glossy
Fork
Suntour Mobie25, 100 mm travel with Lockout-Function,
Head set
Acros AZF-668, tapered, with cable integration
Shifting System
Shimano Nexus 5-speed free wheel
Damper
- - -
Derailleur
- - -
Brakes
Shimano BR-MT200 (front 180 mm / rear 180 mm) Disc
Headlights
Busch & Müller Lumotec IQ-XS Highbeam, including Highbeam function, 150 / 100 LUX including standinglight
Rear light
Trelock LS 654, with brake light function, including standinglight
Carriers
Kreidler Basic Tour 2.0, strutless, with spring flap, compatible with Racktime Snap-It 2.0 System
Saddle
Selle Royal Essenza
Seat post
Humpert Ergotec Atar, patent, 30,9 mm, 300 mm
Pedals
Marwi SP-823, black
Kickstand
Atran Velo Rex, rear kickstand
Chainguard
SKS Chainbow_E
Mudguard
SKS 75R, plastic
Weight
28.6 kg
Stem
Humpert Ergotec Octopus 50, angle adjustable
Handlebars
Humpert Ergotec City Cruiser, 635 mm
Grips
Humpert Ergotec EG-Ambition, with clamp
Shift lever
Shimano Nexus, twist shifter
Brake lever
Shimano Altus, 3-finger-brake lever
Tires
Schwalbe Super Moto-X, 62-584, reflex
Rims
Schürmann YAK 23 Disc Double Wall Alloy Rim, 36 holes
Spokes
2,0 mm, black
Front Hub
Shimano Alivio HB-MT400, 15 x 100 mm, Centerlock, 36 holes
Rear Hub
Shimano Nexus 5-speed SG-C7000-5D, Centerlock, 36 holes, free wheel
Sprocket
Gates CDX pulley, 32 teeth
Chain
Gates CDX-drive belt
Inner bearing
- - -
Bottom bracket
Miranda aluminum, 170 mm, 46 teeth
Gear ratio (front:rear)
46 teeth : 32 teeth
Show all specs + Show less specs Product data sheet
